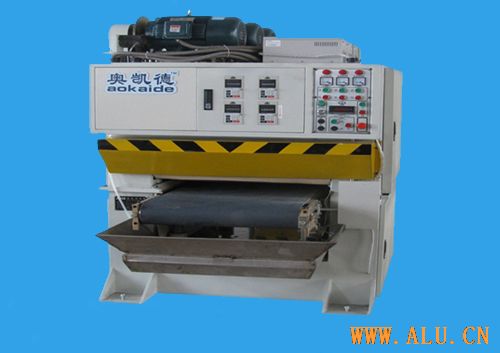

Scrotch-brite roller SB hairline finishing polishing brushing machines for stainless steel alu.sheets
Main features
This model of machine is mainly used for stainless steel or aluminum sheet surface hair line (HL) or SB brushing finishing with 4 scrotch-brite rollers of diameter 300mm
Main features:
machine frame made by steel casting
sheet feeding through will rollers, feed speed changes
the 4scrotch-brite rollers(wheels) work separately or together
ideal feeding table design
feeding table height keep the same,
main motors fixed inside the machine body
the rollers lift or lower with hand wheels
Low maintenance
Main technical data:
Machine model MS4R-127
Working work piece Thickness 0.5-50mm
Length More than 400mm
Width 40-1270mm mm
Feed speed 6-30m/min
Motor power
(KW) Main motors 7.5kwX4
Feed-through motor 3.0
Cleaning brush motor 0.37
Air Consumption volume 0.9m3/min
Working pressure 0.55MPa
Dust Exactor Wind volume 6500 m3/h
Pressure 2300Pa
Wind speed 25-30m/s
Machine size the main machine 2050x1650x2620mm
Control cabinet 400x1140x850mm
Net weight About 4,400kgs
