Large Format YAG Aluminum Laser Cutting System
GOLDEN LASER Series Metal Cutting Machines Advantages:
1. Cutting surface is smooth and less dross. The maximum thickness is up to 10mm (cutting mild steel). This is the maximum cutting thickness in small and medium power YAG cutting industry.
2. Stainless steel below 6mm and mild steel below 8mm can just use air to laser cut (no required oxygen gas). Good cutting effect, maximizing reducing use-cost.
3. Integrated nesting software (GOLDENLASER independently developed). Metal parts of different shapes can be auto arranged in an optimal way. Excess material nesting function enable excess material reuse. Material saving up to 8%-10% than general processing.
4. Dynamic focusing system. When cutting different thickness metal sheets and uneven materials, adjusting focus is no required, so as to achieve fast cutting and greatly improve working efficiency.
5. Rotary attachment can be optional equipped for metal tubes / metal pipes cutting and positioning punching.

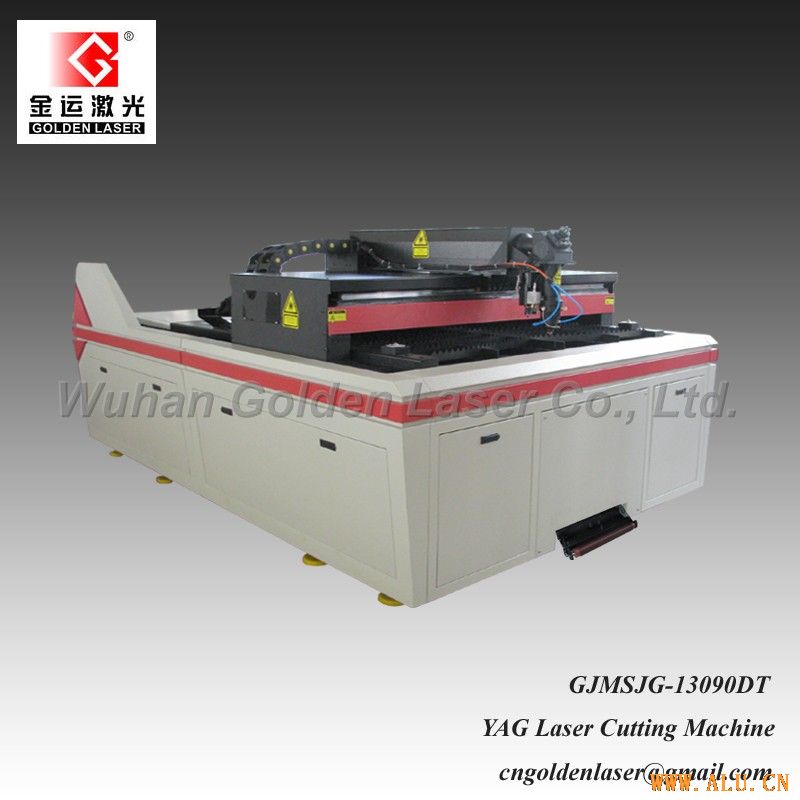

GJMSJG-13090 DT Lamp Pump High Precision Laser Cutting Machine
Machine Features
1. This working area is suitable for processing large-size sheet metal.
2. High precise ball screw driving system and LCD display offline system, achieves perfect sheet metal laser cutting solutions.
3. If equipped rotary attachment, it can cut various shapes for metal pipes.
Application Field
Suitable for precision cutting all kinds of metal sheets, such as carbon steel, mild steel, stainless steel, alloy steel, brass, silver, gold, aluminum and alloys, copper and alloys, titanium and alloys, nickel-molybdenum alloys, etc.
Technical Parameter
Laser type: YAG Lamp Pump Solid State Laser
Laser power: 500W / 650W
Cutting area: 1300mmX900mm
Working table: Net saw-teeth work table
No load max speed: 0-30000mm/min
Repeating location accuracy: 0.15mm
Motion system : offline CNC system, servo motor, precision ball screw drive
Cooling system: 18KW constant temperature water chiller
Power supply: Three phase 380V 50/60Hz
Format support: PLT, DXF, BMP, AI, DST, etc.
Standard collocation: Following focus, 1.1KW bottom exhaust
