Detail Information

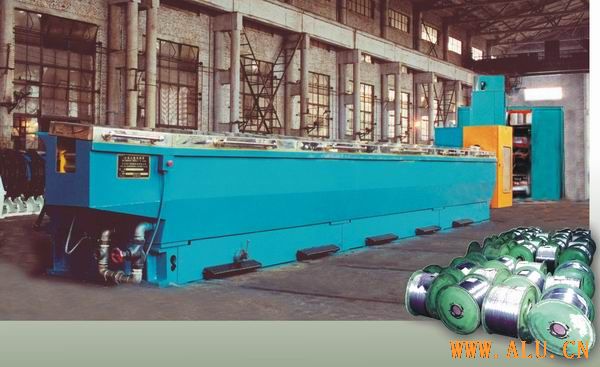

Aluminum Alloy (Aluminum) Rod Breakdown Machine
Type LHD-450/13
This machine is designed through absorbing the technology of the high-speed aluminum alloy rod breakdown machine of Nihoff company. It works to reduce alloy aluminum rod or pure aluminum rod from diameter 9.5 mm or 12 mm into 1.8 mm~4.5 mm.
This machine has capstans arranged in a straight row to draw the rod by means of slipping continuously. Mechanical performance is well matched with the electrical system in terms of speed. It is easy to change dies, and bobbins are changed automatically without stop.
This machine is featured with easy operation, high efficiency and good quality of product.
1. Main Technical Data
1.1. Inlet diameter 9.5 mm or 12 mm
1.2. Outlet diameter 2.1 mm~4.5 mm for alloy aluminum wire,
1.8 mm~4.5 mm for pure aluminum wire
1.3. Max. number of drawing pass 15
1.4. Diameter of drawing capstan 450 mm
1.5. Max. delivery speed 25 m/s
1.6. Motor for take-up 2×22 kW (AC)
1.7. Size of take-up bobbin PND500-630
1.8. Main motor 315 kW (DC)
1.9. Motor for final capstan 75 kW (DC)
2. Main Components
2.1. Pay-off stand 1 set
2.2. Drawing machine proper 1 set
2.3. Accumulator & tensioner 1 set
2.4. Pointing & threading unit 1 set
2.5. Φ630/Φ500 dual-spooler pneumatically and electrically driven 1 set
2.6. Electrical control system 1 set
2.7. Lubrication system for gearbox 1 set
3. Features of Components
3.1. Pay-off stand
3.1. 1. Column type pay-off stand, consisting of rack and roller frame, can pay off rod continuously with two coils in Max. diameter of 1800 mm below it.
3.1.2. Equipped with whole-line-linkage stopper.
3.1.3. Pay-off height 4 meters
3.2. Drawing machine proper
3.2.1. Inlet diameter 9.5 mm or 12 mm
3.2.2. Outlet diameter 2.1 mm~4.5 mm for alloy aluminum wire,
1.8 mm~4.5 mm for pure aluminum wire
3.2.3. Max. delivery speed 25 m/s
3.2.4. Max. number of drawing pass 15
3.2.5. Diameter of final capstan 450 mm
3.2.6. Diameter of die Φ54×Φ38mm
3.2.7. Type of finish die rotary
3.2.8. Inching switch for threading of each die 6 pieces of pedal switches with anti-reverse device
3.29. Main motor power 315kW (DC)
3.2.10. Motor power for final capstan 75 kW (DC)
3.2.11. Lubrication system for gearbox
All bearings of gearbox are lubricated by an oil pump with a 4kW AC motor through oil trough, chiller, pressure gauge and oil pipe.
3.2.12. Cover is made of stainless steel plate in two layers, fitted with handle for opening. No drawing fluid is splashed during normal running.
3.2.13. Fitted with wire breakage detector at the exit.
3.2.14. Cooling & lubrication fluid supply system
To supply cooling & lubrication fluid to drawing die on each section and the excess flows into recycling trough.
3.2.15. There is a space between cooling & lubrication fluid trough and gearbox to prevent mixing.
3.2.16. Capstan is sprayed with diamondite, which makes its service life long.
3.2.17. High precise and ground bevel gears are used for main transmission.
3.2.18. Provided with emulsion pump and chiller of 16m2.
3.3. Accumulator & tensioner
3.3.1. Wire diameter applicable 1.8 mm~4.5 mm
3.3.2. Accumulation volume ≥5m
3.3.3. Diameter of floating guide pulley 270 mm
3.3.4. Diameter of fixed guide pulley 350 mm
3.3.5. Guide pulley is made of ZL108 (cast aluminum)，sprayed with diamondite on the face under high temperature.
3.3.6. Tension control
Tension is regulated by air pressure of pneumatic cylinder, continuously adjustable and synchronously adjustable with take-up.
3.3.7. Wire breakage detection
Automatically stop in case of wire breakage.
3.3.8. Inching switch
Inching pedal switch 1 piece
3.4. Φ630/Φ500 dual-spooler pneumatically and electrically driven
To be designed according to latest model of Nihoff company in Germany, similar to imported equipment in operation performance.
3.4.1. Wire diameter range of traversing 1.8 mm~4.5 mm
3.4.2. Take-up bobbin size PND500, PND560 or PND630
3.4.3. Max. take-up speed 25 m/s
3.4.4. Pneumatic butterfly type brake to be used.
3.4.5. Automatic change of bobbin at preset length, pneumatic elevation, pneumatic clamp and mechanical protection.
3.4.6. Traversing control
To be driven by a separate motor, with duplex traversing screws, automatic traversing as per wire diameter and linear speed.
3.4.7. Wire catcher
Rate of success to catch wire is not less than 99%.
3.4.8. Length counter
It is accurate and precise for countering and has a function of change of bobbin.
3.5. Pointing & threading unit
3.5.1. Diameter of roller 110 mm
3.5.2. Inlet diameter 1.8 mm ~12 mm
3.5.3. Diameter of capstan Φ430x300mm
3.5.4. Rotation speed of capstan 16 r/min
3.5.5. Motor power 5.5 kW (AC)
3.6. Electrical system
3.6.1. Power in 3-phase and 5-line system: 380V (±10 %) 50Hz
3.6.2. Linked run of the machine is controlled by Siemens PLC.
3.6.3. Electrical control panel
3.6.3.1. Main control desk for drawing machine (man-machine interface touch screen included)
3.6.3.2. Power panel and transmission panel
3.6.3.3. Control panel for dual-spooler
4. Features of Electrical System
4.1. Transmission
Transmission for the whole production line is driven by DC motor and controlled by Siemens full digital DC controller with digit volume tachometer and digit volume preset, which makes speed regulation precision at 0.006% and ensures the same for the whole production line.
4.2. Control
4.2.1. DC transmission is provided with full digital DC controller, which ensures speed regulation precision. Take-up speed automatically tracks drawing speed of main machine via accumulator, which ensures synchronization with main machine.
4.2.2. PLC is used for Control and operation is performed on big man-machine interface screen.
4.2.3. PLC is communicated with each DC controller and each speed is transferred to corresponding DC controller through communications after it is calculated by PLC, which ensures speed regulation precision of each motor during drawing. Communications ensure high stability and low frequency of trouble and high control precision also ensures success rate of change of bobbin in full.
4.2.4. Operation is performed on big man-machine interface screen with indications in English. It is visual and easy to operate and indications of running conditions and trouble are good for checking and maintaining of the machine.
5. Main Features of the Machine
5.1. This machine is designed as per latest machine model M85 of Nihoff company in Germany, featured with good look, advanced construction, low running noise, high efficiency and economic benefits.
5.2. Drawing capstans are arranged at slanting angle on side in a straight row to avoid slipping or scratching between wires. This machine is featured with high strength and good rigidity. Final capstan and drawing capstans are driven by separate motor with advanced general assembly and speed is synchronous and adjustable, which makes it possible for rapid bobbin-change.
5.3. Drawing capstans are fully immersed in drawing fluid, which makes it possible for dies and aluminum wires are well cooled and lubricated.
5.4. Drawing capstans, final capstan and guide rollers have features of high hardness, good wear resistance and long service life after they are sprayed with diamondite.
5.5. Bevel gear with high precision and ground face makes low noise and has protection device against insufficient oil in it.
5.6. Main motor for drawing, motor for final capstan as well as motor for take-up are all provided with fully digital DC speed regulator whose precision of speed regulation is high.
5.7. Dual-spooler runs by pneumatic and electric means, which makes good stability and no oil leakage. Special construction design ensures no loose wire in the internal layer when paying off, which makes it low operation cost.
5.8. Success rate of change of bobbin at above 99%.
5.9. Electrical system is provided with PLC and touch screen on which datum can be preset, modified and indicated. All kinds of running datum can be controlled and examined. It is advanced and easy to operate.
6. Accessory
Lubrication oil supply station
7. Requirements to the User
7.1. Compressed air source and piping outside, cooling water pump and piping for chiller for drawing and take-up, all kinds of wires and cables for wiring outside and so on.
7.2. Total installed power 450kW
7.3. Cooling water flow 16 m3/h (temperature at 25℃)
7.4. Compressed air volume 10 m3/h (Pressure at 0.6 Mpa)
