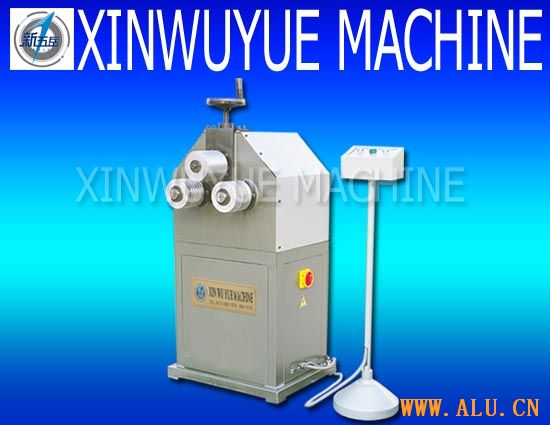

Product Name:Window machine-- Aluminum Molding Material Winding Round Machine LW-115
Sort:Aluminum Ingot
Company:Jinan Xinwuyue Machinery Factory
Location: China
Contact Person:Macy Wang
Post Time:2009/7/24
Free Member
Jinan Xinwuyue Machinery Factory
Tel:86-531-88268516
Fax:+86-531-88268506
Add:No.182-30,North Industry Road,Jinan city,china
Post Code::250101
E-mail:xwywang@hotmail.com
Detail Information
1. For bending aluminum door profiles.
2. The system can make it easier for T-bend, U-, E-type, such as the cross-section profiles;
3. Mold can be bent through a dedicated system for other sections of the profiles;
4. The mold is made of nylon so that the profiles are not so easy to injury.
Technical parameter:
Power 380V 50Hz (three-phase four-wire)
Power 0.55KW
Can bend the largest cross-section profiles 100 × 25mm
Wheel diameter 120mm
Can turn the smallest diameter circular Φ450mm (the largest cross-section profiles for Φ800mm)
Wheel speed 45rpm
Size (length width × high ×) 610mm × 610mm × 1200mm
