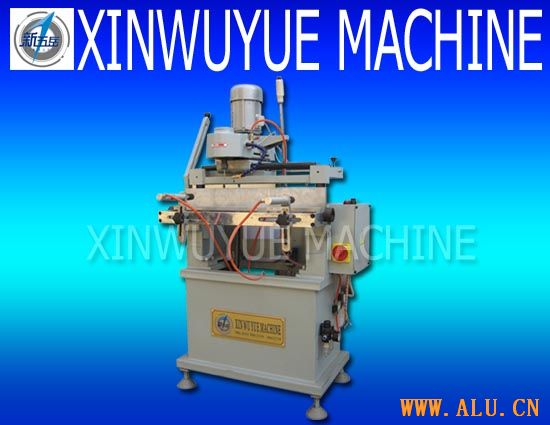

Product Name:Window machine--Single head Copy Milling Machine LXF-290X90
Sort:Aluminum Ingot
Company:Jinan Xinwuyue Machinery Factory
Location: China
Contact Person:Macy Wang
Post Time:2009/7/24
Free Member
Jinan Xinwuyue Machinery Factory
Tel:86-531-88268516
Fax:+86-531-88268506
Add:No.182-30,North Industry Road,Jinan city,china
Post Code::250101
E-mail:xwywang@hotmail.com
Detail Information
1. Use the imported special aluminum alloy original cutter. And the original models for insulation and high precision machining of aluminum alloy doors and windows, high efficiency to improve the characteristics, size precision milling and processing of surface smoothness to meet the national standard.
2. Have compacting structure and small size..
3. Be vertical and horizontal machining in a row.
Technical Parameter:
Surface processing straightness ± 0.1mm
Cutting surface roughness Ra12.5μm
Power 380V 50Hz (three-phase four-wire)
Power 1.85Kw
Speed 2800rpm
Working pressure 0.5-0 .8 M pa
Cutter diamete Φ5mm
Profiling range 290 × 90mm
Size (width × high × long) 1000mm × 900mm × 1500mm
Weight 250Kg
