Detail Information

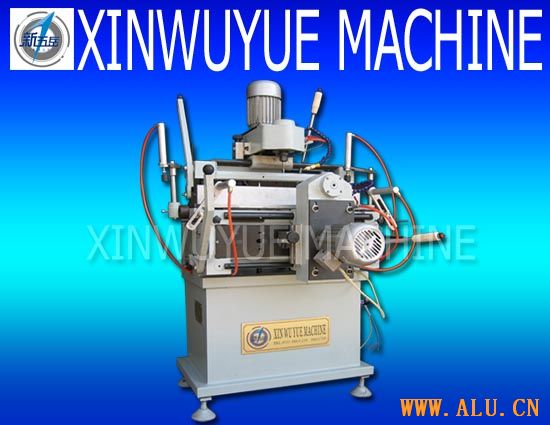

1. Process for the milling the hole slot.
2. Use imported special aluminum alloy original cutter, and the original models for insulation and high precision machining of aluminum alloy doors and windows, high efficiency to improve the characteristics, size precision milling and processing of surface smoothness to meet the national standard.
3. Have compacting structure and small size.
4. Be vertical and horizontal machining in a row.
Technical Parameter:
Power 380V 50Hz (three-phase four-wire)
Power 1.85KW
Speed 2800rpm
Working pressure 0.5-0 .8 M pa
Cutter diameter Φ5mm Φ8mm
Profiling range 290 × 90mm (Vertical) 300 × 100mm (standard)
Size (width × high × long) 1000mm × 1100mm × 1500mm
Weight 250kg
