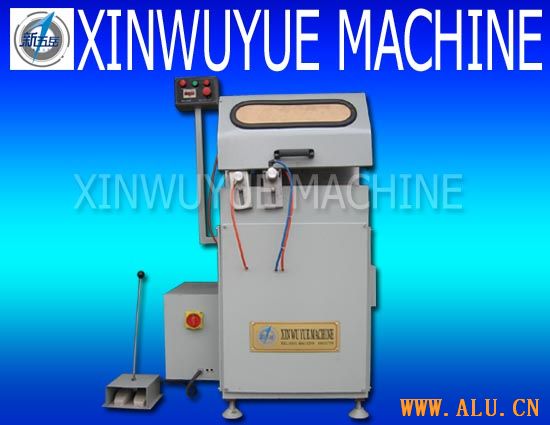

Product Name:Window machine--Corner Connector Cutting Saw for Aluminum-door-window LJJZ-420X180
Sort:Aluminum Ingot
Company:Jinan Xinwuyue Machinery Factory
Location: China
Contact Person:Macy Wang
Post Time:2009/7/24
Free Member
Jinan Xinwuyue Machinery Factory
Tel:86-531-88268516
Fax:+86-531-88268506
Add:No.182-30,North Industry Road,Jinan city,china
Post Code::250101
E-mail:xwywang@hotmail.com
Detail Information
1. Be specialized for cutting the corner connector of the aluminum door and window, equipped with the pressing and feeding setting.
2. The auto style adopts the corner connector auto counting, which can read and visualize the finished amount at any time.
3. Use the special imported stiff alloy cutting saw, and be set with the locating equipment for the length of the corner connector.
4. Be equipped with the ruler for the cutting length, in order to adjust the cutting length conveniently.
5. Have three compact setting and there is a guidance structure in the corner connector place, so that it can avoid the useless sharp angles.
6. The finished angles can fall into the presetting container automatically and separate with the cutting crumbs.
Technical parameter:
The max cutting width,height,length Max:115mm, Max:180mm, Max:115mm
Motor power: 0.5-0.8Kw
Power supple 380V 50HZ (three-phase four-wire system)
Motor rotary speed 2850rpm
Auto feeding length: 3-600mm
Working pressure: 0.5-0.8Mpa
Contour dimension: (length width height) 850mm×1100mm×1600mm
Wight 300kg
