Detail Information

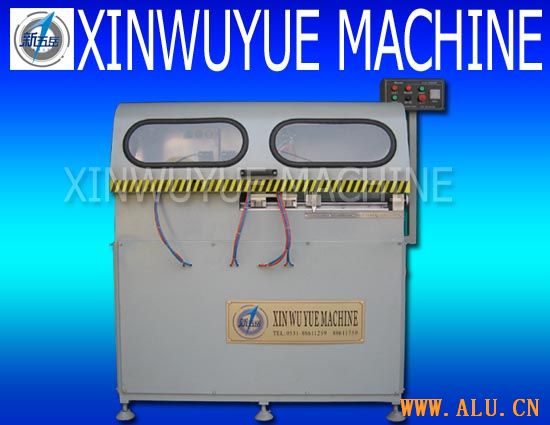

1. It is the special equipment for cutting the corner connector of the frames and fans for the ALU-door-window and curtain wall.
2. Adopt the imported Programmable Control System (PLC).
3. Adopt the imported special cutting saw for the aluminum alloy, with high precision.
4. The auto style adopts the corner connector auto counting, which can read and visualize the finished amount at any time.
5. The feeding machine adopts imported linear bearing pair, automatic feeding, stability and high efficiency.
6. The feeding structure adopts the linear guiding rail moving pair, with high precision.
Technical parameter:
The max cutting width and height 140mm&140mm
Blade size Φ500×Φ30×4.4×Z120
Power supple 380V 50HZ (three-phase four-wire system)
Motor rotary speed: 2800rpm
Cutter feeding speed: 0-3m/min
Auto feeding length 3-600mm
Working pressure: 0.5-0.8Mpa
Air consumption: 60/min
Contour dimension (length width height) 1500mm×1100mm×1600mm
Wight: 850kg
