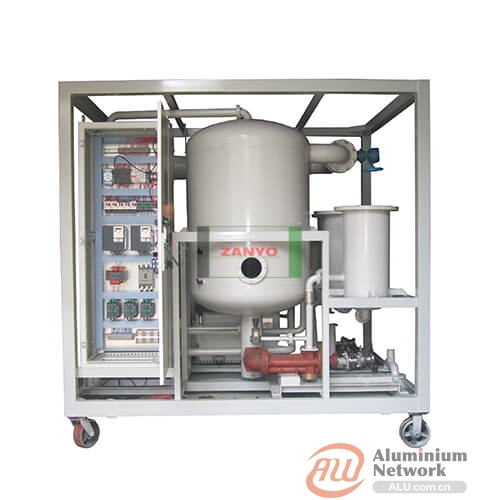

UVP Ultra-high Voltage Transformer Oil Purifier

Performance and Usages

UVP Ultra-high VoltageTransformer Oil Purifieris Especially for ultra-high voltage project as (1000KV,±800KV, 750KV,±660KV) SubstationMaintenance Contractors and Utilities need anUVP Ultra-high VoltageTransformer Oil Purifierthat can quickly and reliablyprocess transformer oil to meet or exceed very stringent specifications;

In order to achieve optimal dielectric strength and insulating performance inside of transformersand circuit breakers, dielectric oils must be kept absolutely clean and dry;

ZANYO designsand manufacture the most effective, durable, and user-friendly machine running and serving customers in 40 more countries with good reputation.

Functions

• Degassing: to remove other dissolved combustible gases such as Acetylene, Ethylene, Ethane, Methane, Hydrogen and Carbon Monoxide, and Carbon Dioxide.


• Dehydrating: to remove free and dissolved water, including insulation dry-out of the windings.


• Solid particles Removing: to remove solids particles.


• Decoloring and recycling: to remove acids and make the oil color good.


•


  Technical Features





  • Specially designed the evaporation chamber(clients can choose), to makelargerspace fordegassing and dehydration.


  • To adopt with auto- pressurization defoaming technology, more than 200 hours of continuous operation without bubbles rise.


  • Unique technology: Atomizer is placed inside at the bottom of the chamber, to increase the evaporationarea and extend the degassing time.


  • To adopt vacuum balance pressure technology, vacuum pumping efficiency increased by 50%.


  • Advanced level control system, continuously oil supply to prevent oil pyrolysis.


  • Advanced level control system.


  • PLC controlling system.


  • All parts are from world’s famous
