Aluminum braid different size electrical

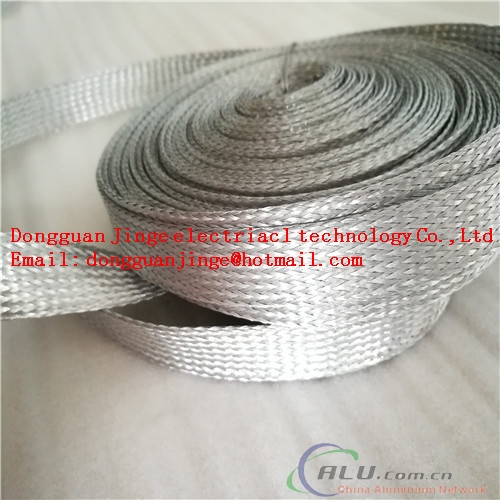

Aluminum braid

Manufacturing process:

The aluminum braid is made of aluminum wire or magnesium wire, which is weaved by 16 spindles, 24 spindles, 36 spindles, 48 spindles and single filament 0.12,0.2,0.25,0.35. The aluminum braid can pass 3-5A current per square meter, the temperature is suitable for about 200 degrees, the high temperature of the environment current take off, the temperature is low, take the upper value. Mainly used in oxidation environment, silicon carbide rod connection, common specifications 15mm width, 20,25,30,40mm width, the maximum cross-sectional area of 50 square. The aluminum magnesium alloy braid is made up of an aluminum magnesium alloy wire (BY, BR) warp knitting machine into an elliptical pipe network, which is stretched and flattened by the equipment. Flat aluminum magnesium alloy braid commonly used specifications are: strands * root diameter (16*5*0.12) (16*6*0.12) (16*7*0.12) can also be calculated according to nominal cross-sectional area, cylindrical aluminum magnesium alloy braid specifications are generally calculated according to ingot, subdivided into 8-48 spindles. The price of aluminum magnesium alloy woven belt is generally priced on the market.

Diameter: 8-54mm

Length: 200-4500mm

Power: 500-8000w

Rated temperature: 1450 centigrade

Advantages:

High heating temperature, high temperature resistance, oxidation resistance, corrosion resistance, long service life, fast heating, high temperature deformation, easy installation and maintenance.

It has excellent heat to cold terminal resistance ratio, energy saving and long service life.

Application:

Electric heating elements of tunnel kiln, roller kiln, glass furnace, vacuum furnace, muffle furnace, smelting furnace and all kinds of heating equipment.
