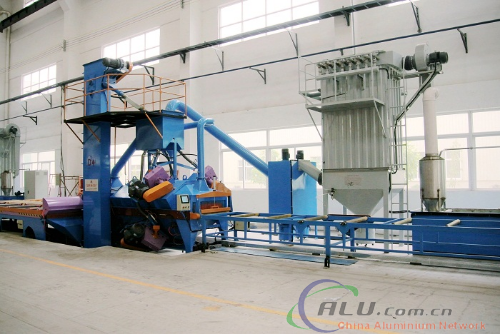

aluminum sand blasting machine

Features :

1.Several shot guns are speed adjustment controlled by independent frequency converter,shot four side of aluminum profile evenly,suitable for all kinds of profile.

2.Automatic sand discharging device ,remove the sand which remain in slot of profile.

3.Double whirlwind dust cleaning device and water type dust cleaning device,excellent dust removing effect.

4.High efficiency,PLC control.

5.Interval for material feeding is reduced to 5 seconds

6.Sand recovery system,save sand consumption.

7.Automatically remove aluminum scraps and impurities in steel sand.

8.Auto steel sand dust removing device.

Parameters:

Shot rotation (adjusted by transducer): 1600��2400 r/min

Feeding speed (adjusted by transducer): 4��8 m/min

Total power: about 58kw

Effective shot area(W*H): 8500mm*240mm

Day output:about 20~30 Ton/day

Aluminum consumption: less than 1 kg/Ton

Sand consumption: 0.5~1.0 kg/Ton
